8 Series

8.5S K

Product Description

The 8 Series MultiOne compact mini loader range has undergone a huge upgrade and face lift. Consisting of only 2 models now, the 8.4S K comes standard with double speed and a new Kubota V1505 powerplant. In addition, the new ACI attachment control pack is now standard as well as cruise control and ONE DRIVE, an innovative new way of providing maximum traction in any condition. A fresh new look for the dash design and improved servicing options as well as indestructible covers concludes the improvements for the 2021 line-up.

The MultiOne 8 Series continues to impress with brand new architecture and design making it the only compact mini loader in its class to achieve the performance and standards in a very competitive and cost-effective package. Only Top Quality Components and materials are used in the construction of this compact utility machine. The 8 Series comes with high-speed radial piston motors delivering not only speed but massive traction unequaled by competitors.

Design features include a wide, comfortable and easily accessible driver area with a luxury seat and hi-profile backrest as well as a fully adjustable headrest. Full 360° visibility is offered by the new seat position and controls layout. The new cabin design not only assures great visibility of the attachments but also superior comfort and top of the line controls, left side protection bar, standard ROPS and FOPS protection, LED lights and a Hi-Fi Radio with Bluetooth. Hydraulic dumping mounts on the engine ensures almost no engine vibrations.

The MultiOne 8 series offers Best in Class lifting capacity, a strong and powerful double-H design type telescopic boom and 3 axis full time movements (lift/dump/telescopic) from the joystick. The stability and reliability features of these new revolutionary mini loaders include advanced and modern frame design, low centre of weight for amazing stability, integrated back weights and heavy duty cold forged articulation joints. Traction control (anti slip valves) and dynamic block systems (diff locks) are standard on the MultiOne 8 Series. The radial piston direct drive wheel motors on all models provide options for double speed and fast travel requirements on roads and even surfaces.

Standard Features

  • Rehlko / Kohler KSD 1403 TCA, 3 cyl. -1391 cc, diesel engine water cooled, turbo intercooler, electronic injection system, electric start, glow plug
  • Stage V and Tier 4 Final compliant engine
  • OneDrive System: DBS (Dynamic Block System), Cruise Control and Torque Divider activated by Joystick
  • ETC – Electronic Throttle Control
  • ACI with Multifunction joystick (22 functions)
  • Unbreakable Body Panels
  • 2 Speed Hydraulically pilot operated variable displacement drive pump
  • Self-locking multi-disk parking brake
  • Hi-Flow system
  • Integrated rear weights
  • Self-levelling double-H telescopic boom
  • Radial Piston high efficiency and heavy duty wheel motors
  • 4WD hydrostatic Direct Drive motors, proportional servo control
  • Hydraulic oil cooler
  • Hydraulic multiconnector
  • ROPS-FOPS Level I
  • LCD graphic display with programmed service
  • 2 front working lights
  • Ergonomic fully adjustable suspension heated seat with armrests and seat belt

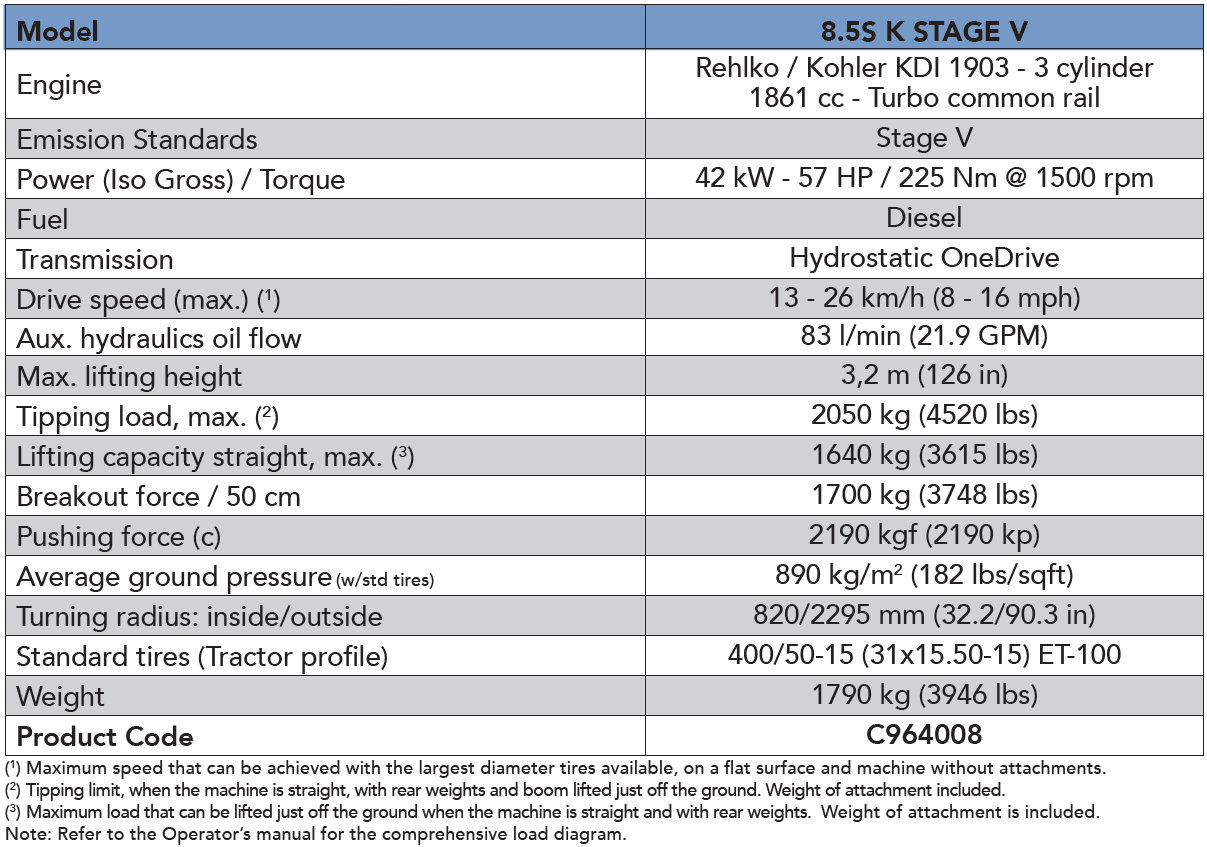

8.5S K SERIES DATA SHEET

Description

The 8 series is it the perfect all-rounder for farming landscaping, construction, DIY, cleaning, forestry, and maintenance on all terrain types. The 8 Series offers a perfect replacement or alternative to common skid steers due to it lighter frame and fuel efficiency.
